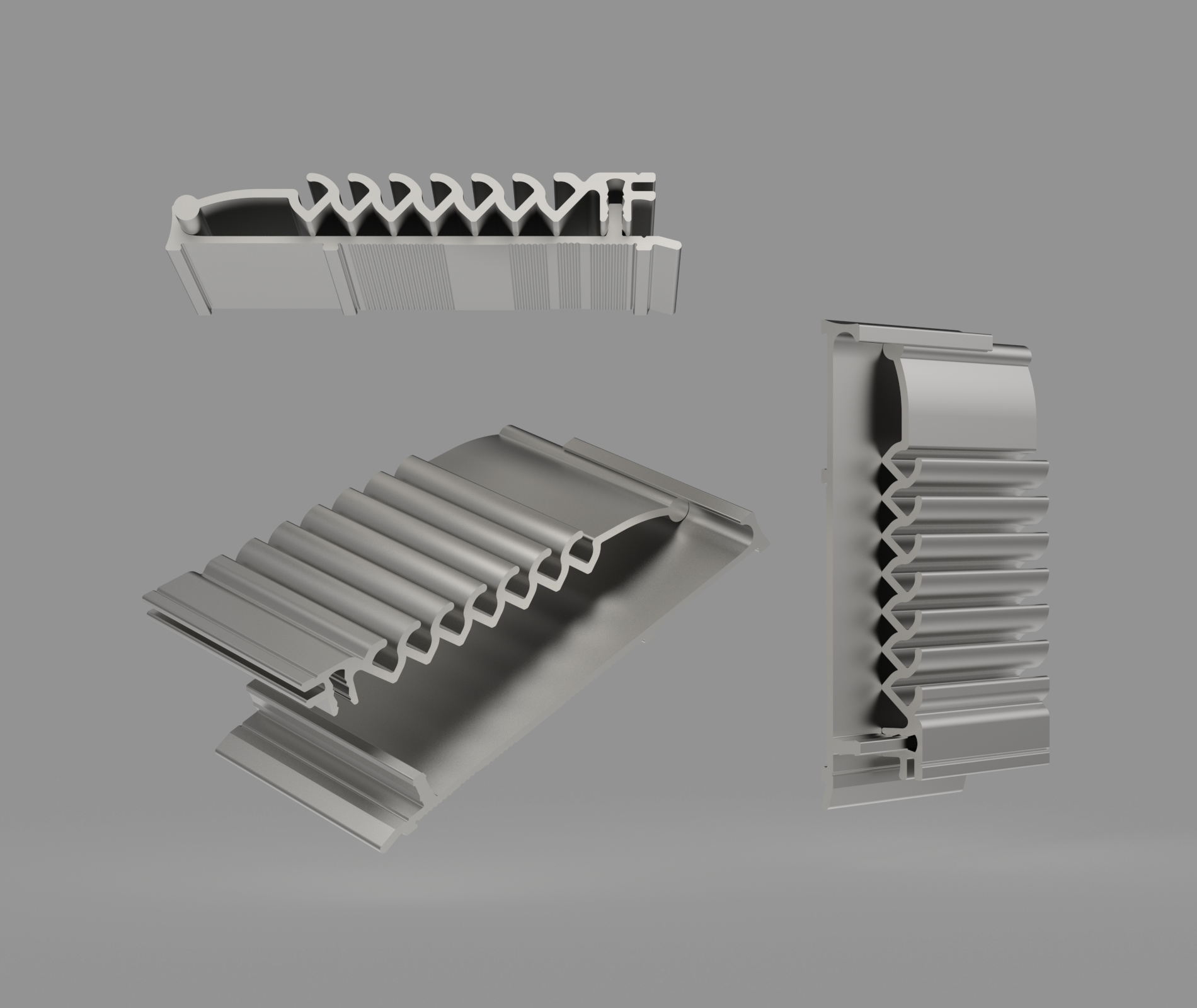

The product that Traxx™ has been known for since 2006 and still retains its status in the Traxx™ range. The TraxxOne™ system has class-leading adjustment of up to 84mm allowing ripple free, drum-like tension display of a skin on any size of truck. With fixing options including glue, screw or rivet, and base options for flat, corrugated or damaged trucks, TraxxOne™ is our most versatile system.

TECHNICAL INFORMATION
Material: Aircraft grade 6061 T6 aluminium extrusion
Overall Width: 9.37mm
Skin Tension: ≤ 1498 N/5cm
Colour: Silver anodised
Profile Format: 6 metre bars
Base Profile Mounting Method: Sika® Aktivator-205 + Sikaflex-552® or AS/6 rivet
Tension Profile Mounting Method: Hand crank tension, single hook with two-stage Patented clip
Skill Level, Frame Mantling: Certified Professional
Skill Level, Skin Install: Certified Professional
Life Expectancy: 10+ years
Warranty: 350-change 7-year warranty

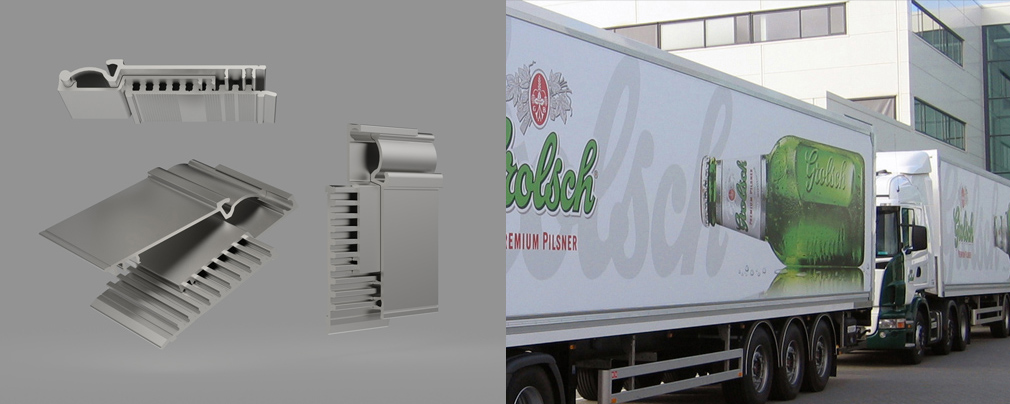

Introduced in 2015, the result of 12 years R&D. The TraxxTwo™ system has up to 52mm of adjustment and retains the functionality of our ‘premium’ system. No part of the TraxxTwo™ system is screwed or riveted to the truck side and all components can be European ECE104 Compliant. With the introduction of safety features on the tensioning profile, it opens the opportunity for Certified Contractors to make campaign changes.

TECHNICAL INFORMATION
Material: Automotive grade 6063A T5 aluminium extrusion
Width: 10mm
Skin Tension: ≤ 1048 N/5cm
Colour: Silver anodised
Format: 5 metre bars
Base Profile Mounting Method: Sika® Aktivator-100 + Sikaflex-552AT®
Tension Profile Mounting Method: Hand crank tension, multiple hook with additional safety clip and two-stage Patented clip
Skill Level, Frame Mantling: Certified Professional
Skill Level, Skin Install: Certified Contractor
Life Expectancy: 10+ years
Warranty: 250-change 7-year warranty

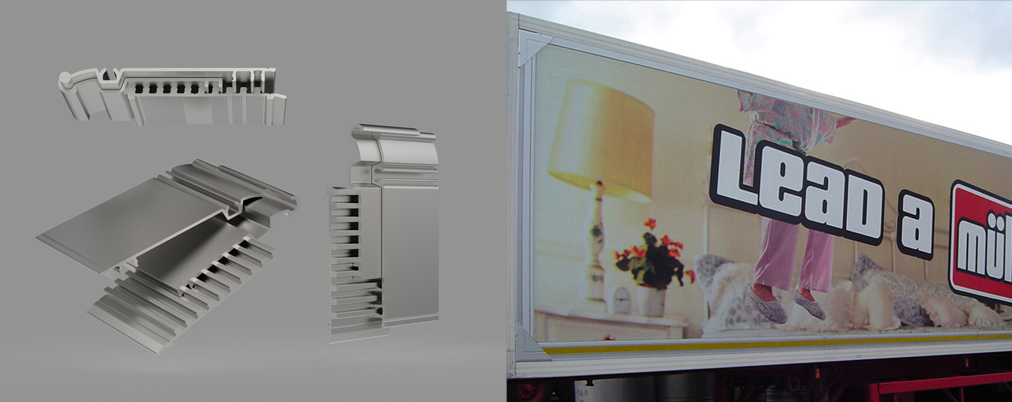

New for 2021 to meet the revised Kraftfahrt-Bundesamt Allgemeine Betriebserlaubnis / Federal Motor Vehicle Office (KBA) Type Approval (ABE) for Traxx No. 31488. Schlank is German for ‘slim’ and at 6.8mm overall width the TraxxTwo / Schlank™ system is the slimmest and lightest system available on the market, and the only to be credentialed by the KBA under 12mm! This exceptional achievement has been made possible by the Patented TraxxKeder™ and 17 years of insight leading this sector. No part of the TraxxTwo™ system is screwed or riveted to the truck side, making it ideal for refrigerated vehicles that have already been manufactured to maximum width, and all components can be European ECE104 Compliant.

TECHNICAL INFORMATION
Material: Aircraft grade 6061 T6 aluminium extrusion
Width: 6.80mm (0.26in)
Skin Tension: ≤ 1048 N/5cm
Colour: Silver anodised
Format: 4.7 metre bars (15.4ft)
Base Profile Mounting Method: Sika® Aktivator-100 + Sikaflex-552AT®
Tension Profile Mounting Method: Hand crank tension, multiple hook with additional safety clip and two-stage Patented clip
Skill Level, Frame Mantling: Certified Professional
Skill Level, Skin Install: Certified Contractor
Life Expectancy: 10+ years
Warranty: 250-change 7-year warranty

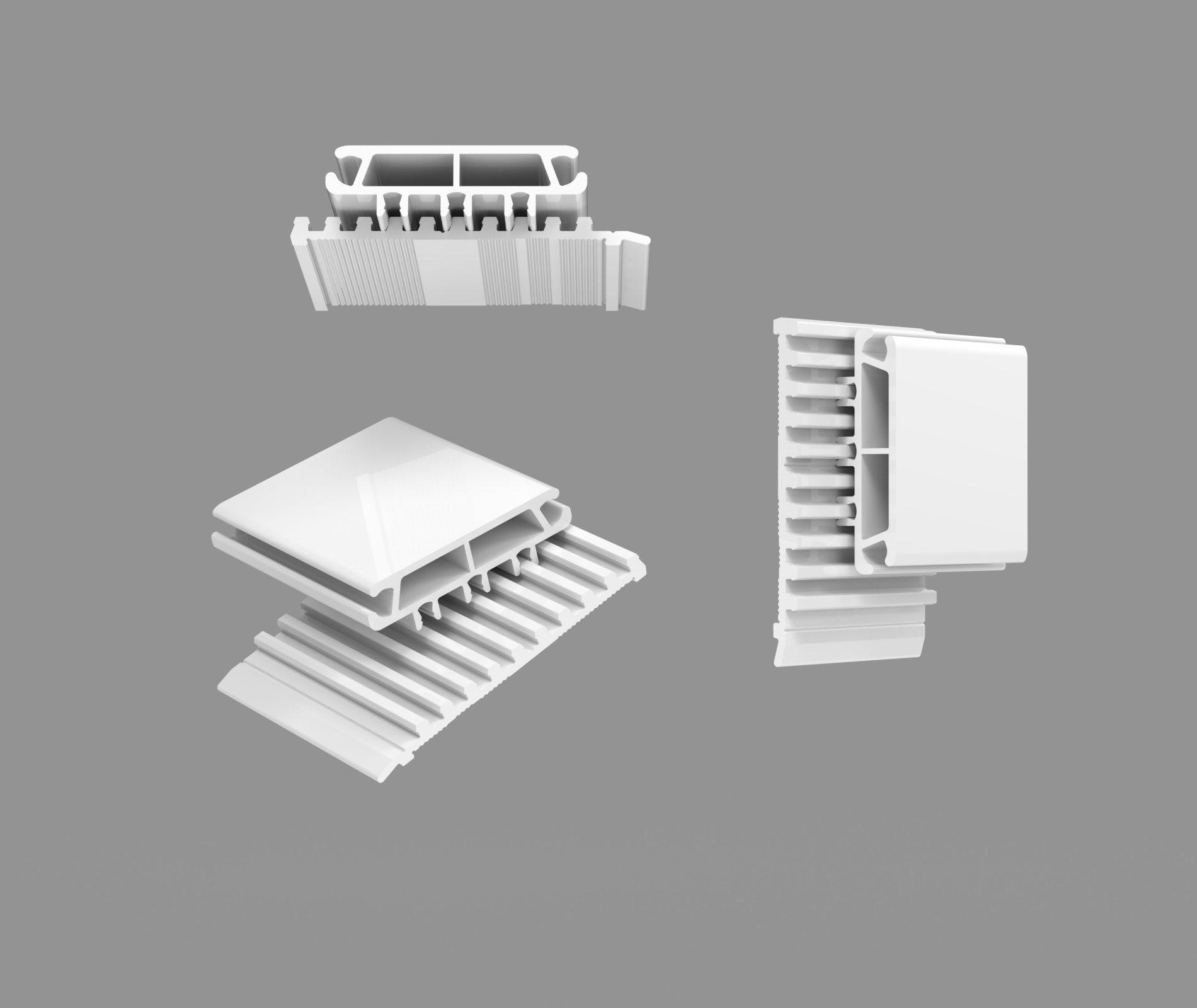

Because Traxx™ are the market leaders, we’ve engineered the best, low-cost system! The TraxxThree™ system is the result of a collaboration with a leading thermoplastic expert and the 3M™ adhesives team. TraxxThree™ is our simplest system designed specifically for marketing teams and end-users to make their own campaign changes on truck surfaces up to 2m x 4m, or 8 square metres, including curved surfaces such as refuge trucks. With three separate Patented clips, the product has up to 74mm adjustment, making it perfect for DIY use.

TECHNICAL INFORMATION
Material: CRE08/156 grade PVC, calcium/zinc stabilised, high impact extrusion
Width: 14.04mm
Skin Tension: ≤ 374 N/5cm
Colour: Standard PVC White, or any RAL colour to match customer requirement
Format: 4 metre bars
Base Profile Mounting Method: 2x strips of 12mm 3M® VHB® 4941
Tension Profile Mounting Method: Hand tool tension, simple rotation onto three independent Patented clips
Skill Level, Frame Mantling: DIY
Skill Level, Skin Install: DIY
Life Expectancy: 7 years
Warranty: 50-change 2-year warranty

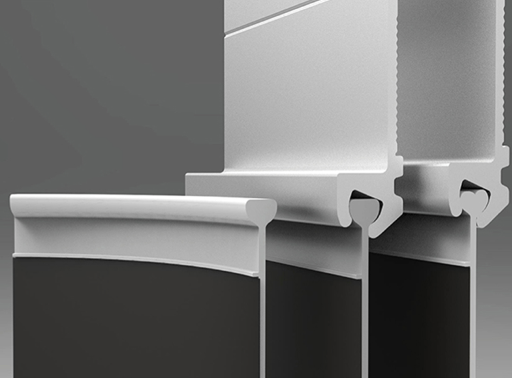

In 2005, after 2 years of R&D using a commodity stock keder, we began to discover basic flaws for a truck side application. Most stock keder is used for 2-week billboard installs where high tension, temperature change, vibration and negative vortex wind loading are not influencing factors. On a truck side, they are! The tension profile of our prototype Traxx™ system put enormous stress on the banner substrate and keder, and after 6 months of operating in a harsh truck environment, we found the beginning of deformation and weld failures. For the launch of TraxxOne™ in 2006, we introduced TraxxKeder™ with a unique shape and a unique compound. Why? Because with careful R&D we discovered that with tension, an irregular shape deforms in a controlled way, gripping the unique contours of the keder retaining profile, adding security and structural stability to our systems.

TECHNICAL INFORMATION
Material: Flexible PVC extrusion
Colour: Light Grey
Format: 100 metre rolls
Packaging: Available as 2x 100m rolls in 1 box, or pallet of 12 boxes
Welding Method: HF Recommendation, HA and PW also possible
Maximum Keder Tension: ≤ 1498 N/5cm
Life Expectancy: 3 years (5-7 years for A/S)
Warranty: 2 years (3 years A/S)

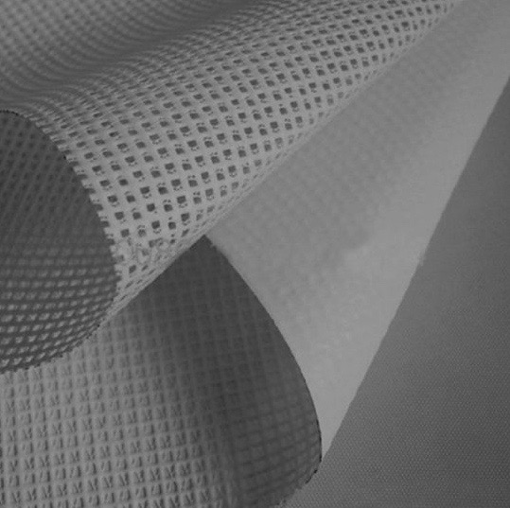

A proprietary 450g/m2 1350D x 1350D semi-coated product with a virgin PVC print face for perfect HD prints, a TraxxRipStop™ warp and weft made using recycled plastic bottles, and a backside manufactured entirely from mixed recycled materials. It is a truly greener solution specifically developed for Traxx™ to eliminate waste, be printed to HD standards and be easily welded to our Patented TraxxKeder™ using high-speed automated processes. When it was MIRA tested on their destruction track and in their climatic chambers, it set new standards for banner safety and performance on truck sides. Be assured that every part of the production process is compliant with the ISO 14001 Environmental Standard. Landfill is just not an option for us.

TECHNICAL INFORMATION
Material: 450g/m 2 PES
Colour: White
Format: 2.5m x 100m rolls
Packaging: Available as 1x roll, palletised pyramid of 15x rolls, or container of 190x rolls
Welding Method: HF Recommendation, HA and PW also possible
Maximum Skin Tension: 1498 x 1498 N/5cm
Life Expectancy: 3 years (5-7 years for A/S)
Warranty: 2 years (3 years A/S)
